Rafael Skylite B UAV

以色列拉斐尔“陨石(SkyLite)”B型无人机

Date:2020-04-06 Source:israeli-weapons By:Globalmil Viewed:


Rafael's Skylite is man-portable, canister launched, electrically powered loitering surveillance and reconnaissance platform offering superior performance, autonomy, availability and flexibility.
以色列拉斐尔武器发展局(Rafael)的“陨石(SkyLite)”无人机是便携式,发射筒中发射,电力驱动巡逻监视和侦察平台,可提供卓越的性能,自主性,可用性和灵活性。

Rafael's Skylite offers a different concept in UAVs. In the final stages of development, the Skylite is a man-portable, canister launched loitering observation system that weighs 6kg and is 12cm in diameter.
拉斐尔的Skylite在无人机中提供了不同的概念。在发展的最终阶段,Skylite是一款便携发射筒发射式巡逻侦察系统,重6公斤,直径12厘米。

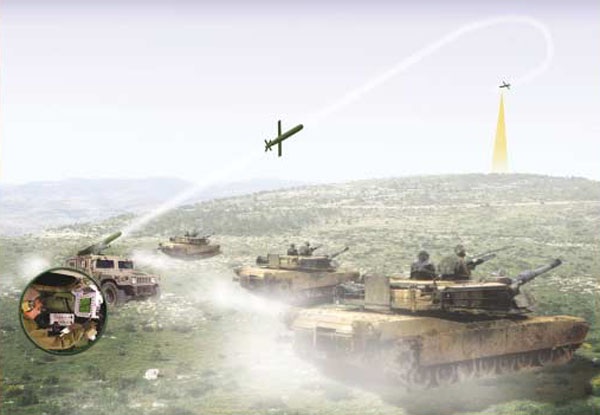

The drone is launched by a booster or small rocket engine. Following launch, the Skylite's wings (1.5m wingspan) snap into flight position powered by an electrical motor. The retrievable drone is equipped with a camera that provides wide area coverage and point-of-interest monitoring. It can operate at a distance of up to 10 kilometers and loiter over the target for more than 60 minutes, providing real-time target imagery, in direct support of the combat formations.
无人机由助推器或小型火箭发动机发射。发射后,Skylite的机翼(翼展1.5米)由电动机驱动进入飞行位置。可回收无人机配备了可提供广域覆盖和关键点监控摄像头。它可以在长达10公里的距离上行动,在目标上空巡逻60分钟以上,从而提供实时目标图像,直接支持战斗部队。

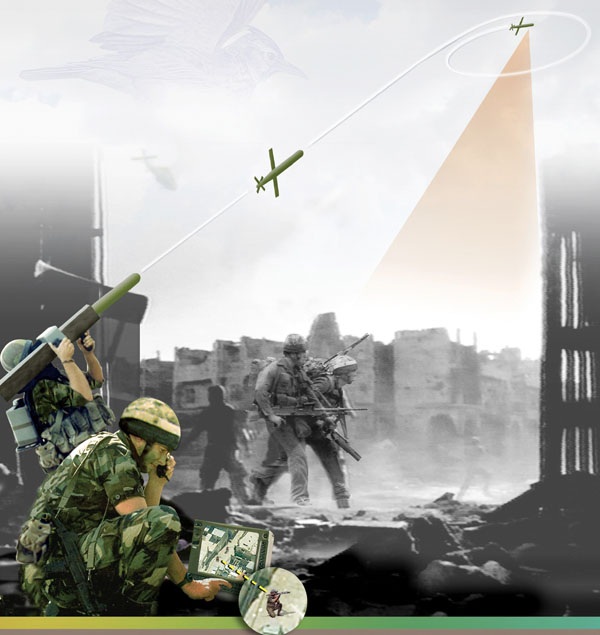

A two-man team can carry up to three Skylites and one mission control console.  Launching is performed immediately, from open or wooded areas, urban terrain or even from enclosed spaces, with no preparation or setup required. The system can operate in difficult weather conditions, including high winds.
一个由两个人组成的团队最多可携带三架Skylites无人机和一个任务控制台。 可以从空旷或林木区域,城市地形甚至封闭的空间中立即进行发射,而无需进行准备或设置。该系统可以在包括强风在内的恶劣天气条件下操作。


The Skylite's payload is gimbaled on two axes and caries a stabilized camera with a high resolution CCD sensor enabling the identification of an armed person. Also, it has a large zoom capability and a unique automatic video tracker.
Skylite的有效载荷在两个轴向上进行万向节调节,并带有稳定功能采用高分辨率CCD传感器的摄像机,可识别武装人员。此外,它还具有较大的缩放功能和独特的自动视频跟踪器。

The SkyLite is propelled with an electrical motor with loitering capability of an hour or more. There is the possibility of replacing the motor with a piston engine to achieve 4 to 5 flight hours.
SkyLite配备了具有一个小时或更长时间巡逻能力的电动机。有可能用活塞发动机替换电动机以达到4到5个飞行小时。

The SkyLite mission is an autonomous one and the flight is according to waypoints which were loaded into its navigation system in the flight preparation stage. These waypoints can be changed easily during the mission.
SkyLite任务是一项自主任务,其飞行是根据在飞行准备阶段已加载到其导航系统中的航路点进行的。 在任务期间可以轻松更改这些路标。

As a tactical reconnaissance and surveillance system, Skylite offers many advantages such as:
•       Long endurance (flies for over an hour over the target).
•       Real-time high resolution imagery (recognition of armed persons is possible).
•       Designed for autonomous operation by tactical units.
•       Independent operation by the infantry unit, rapid and automatic launch, recovery and recondition, without requirements for external support.
•       Can be launched from enclosed spaces and crowded urban settings.
作为战术侦察和监视系统,Skylite具有许多优势,例如:
  • 持久续飞能力(在目标上空飞行一个小时以上)。
  • 实时高分辨率图像(可以识别武装人员)。
  • 设计用于战术单位的自主作战。
  • 步兵部队独立运作,快速,自动发射,回收和修整,无需外部支持。
  • 可以在封闭空间和拥挤的城市环境中发射。

Primary Role[主要角色] Surveillance and Reconnaissance [监视和侦察]
Original[原产地] Israel[以色列]
Dimensions[尺寸] Wingspan[翼展]: 150 cm
Length:[[机长] 110 cm
Diameter[直径]:  12 cm
In-canister weight[筒内重量]: 12kg
Flight speed[飞行速度]: 22 to 35m/sec
Flight altitude[飞行高度]: 100 to 300
Capabilities[能力] Radius of operation up to 10 km[作战半径可达10公里]
Weight[重量] 6 kg
